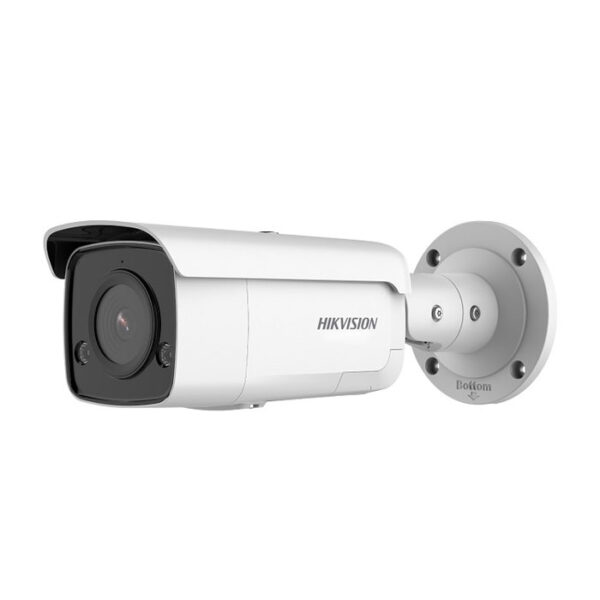

Camera IP AcuSense thân trụ thế hệ 2 8MP DS-2CD2T86G2-ISU/SL

Name: Camera IP AcuSense thân trụ thế hệ 2 8MP DS-2CD2T86G2-ISU/SL
Brand: HIKVISION
SKU: DS-2CD2T86G2-ISU/SL
Availability: InStock

Được xếp hạng 5 sao

0 đánh giá So sánh Đã thêm so sánh

Tính năng: Chống ngược sáng, tính năng thông minh, hỗ tợ thẻ nhớ, ứng dụng thuật toán
Công nghệ sản xuất hiện đại bậc nhất
Tiên phong trong lĩnh vực camera giám sát
Giá sản phẩm đã bao gồm VAT

- Cam kết giá Camera IP AcuSense thân trụ thế hệ 2 8MP DS-2CD2T86G2-ISU/SL tốt nhất thị trường
- Hỗ trợ hướng dẫn sử dụng, cách lắp đặt 24/7
- Sản phẩm Camera IP AcuSense thân trụ thế hệ 2 8MP DS-2CD2T86G2-ISU/SL mới 100%
- Bảo hành sản phẩm miễn phí nếu lỗi đến từ nhà sản xuất

Hình thức

Giá bảo hành tại nhà

Giá Online

Xóa

Thêm vào giỏ

0855.116.555 Gọi ngay / Zalo để có Giá tốt nhất 0855.116.555 Hỗ trợ bảo hành 24/7

Mua trả góp Duyệt online trong 4 giờ Trả góp qua thẻ Không cần xét duyệt

Tính năng: Chống ngược sáng, tính năng thông minh, hỗ tợ thẻ nhớ, ứng dụng thuật toán
Công nghệ sản xuất hiện đại bậc nhất
Tiên phong trong lĩnh vực camera giám sát
Giá sản phẩm đã bao gồm VAT

Sản phẩm tương tự
Phụ kiện mua cùng

Thông số kỹ thuật

Camera
Image Sensor	1/1.8" Progressive Scan CMOS
Max. Resolution	3840 × 2160
Min. Illumination	Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time	1/3 s to 1/100,000 s
Day & Night	IR cut filter
Angle Adjustment	Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Lens Type	Fixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV	2.8 mm, horizontal FOV 110°, vertical FOV 58°, diagonal FOV 134° 4 mm, horizontal FOV 88°, vertical FOV 50°, diagonal FOV 100° 6 mm, horizontal FOV 59°, vertical FOV 34°, diagonal FOV 67°
Lens Mount	M12
Iris Type	Fixed
Aperture	F1.6
DORI
DORI	2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 9 m 4 mm: D: 99 m, O: 39 m, R: 20 m, I: 10 m 6 mm: D: 140 m, O: 55 m, R: 28 m, I: 14 m
Illuminator
Supplement Light Type	IR
Supplement Light Range	Up to 60 m
Smart Supplement Light	Yes
IR Wavelength	850 nm
Video
Main Stream	50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream	50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream	50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression	Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Video Bit Rate	32 Kbps to 16 Mbps
H.264 Type	Baseline Profile/Main Profile/High Profile
H.265 Type	Main Profile
Bit Rate Control	CBR/VBR
Scalable Video Coding (SVC)	H.264 and H.265 encoding
Region of Interest (ROI)	1 fixed region for main stream and sub-stream
Audio
Audio Type	Mono sound

Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate	64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate	8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering	Yes
Network
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Websocket, Websockets
Simultaneous Live View	Up to 6 channels
API	Open Network Video Interface ( Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host	Up to 32 users 3 user levels: administrator, operator, and user
Security	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
Network Storage	NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client	iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser	Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch	Yes
Image Settings	Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Day/Night Switch	Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)	120 dB
SNR	≥ 52 dB
Image Enhancement	BLC, HLC, 3D DNR
Privacy Mask	4 regions of privacy mask
Interface
Ethernet Interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone	Yes
Built-in Speaker	Power: 2 W. Max. sound pressure level: 10 cm: 97 dB.
Audio	1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 2.2KΩ, interface type: non-equilibrium; 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm	Visual alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Reset Key	Yes

Event
Basic Event	Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart Event	Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection
Linkage	Upload to NAS/memory card/FTP, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning, white light flashing
Deep Learning Function
Face Capture	Yes
General
Power	12 VDC ± 25%, 1.17 A, max. 14 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3at, Class 4, 42.5 V to 57 V, 0.4 A to 0.3 A, max. 17 W
Dimension	286.7 mm × 93.3 mm × 91.2 mm (11.3" × 3.7" × 3.6")
Package Dimension	386 mm × 156 mm × 155 mm (15.2" × 7.5" × 7.1")
Weight	Approx. 1130 g (2.5 lb.)
With Package Weight	Approx. 1654 g (3.6 lb.)
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language	33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function	Anti-flicker, heartbeat, mirror, flash log, password reset via email, pixel counter, password protection, one-key reset, three streams
Approval
EMC	FCC: 47 CFR Part 15, Subpart B CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7 KC: KN32: 2015, KN35: 2015
Safety	UL: UL 62368-1 CB: IEC 62368-1: 2014+A11 CE-LVD: EN 62368-1: 2014/A11: 2017
Environment	CE-RoHS: 2011/65/EU WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006
Protection	IP67: IEC 60529-2013

Chi tiết sản phẩm

Camera IP AcuSense thân trụ thế hệ 2 8MP DS-2CD2T86G2-ISU/SL

•Cảm biến hình ảnh 1/1.8″ Progressive Scan CMOS
•Độ phân giải 3840 × 2160@20fps
•Chuẩn nén H.265+
•Hỗ trợ 3 luồng dữ liệu
•Độ nhạy sáng: 0.003 lux
•Ống kính 2.8/4/6mm @F1.6
• Tầm xa đèn hồng ngoại tương ứng vs model 60m
• DS-2CD2T86G2-ISU/SL Hỗ trợ 3D DNR, BLC,HLC, chống ngược sáng WDR 120dB
•Tính năng thông minh : Phát hiện vượt hàng rào ảo, phát hiện xâm nhập, phát hiện vùng đi vào, phát hiện vùng đi ra, chụp hình khuôn mặt
•Ứng dụng thuật toán Trí tuệ nhân tạo, Lọc báo động giả không phải do người và phương tiện gây ra , độ chính xác có thể đạt 98.94%
•Hỗ trợ thẻ nhớ tối đa 256GB, hỗ trợ tính năng ANR
•01 ngõ vào báo động , 01 ngõ ra báo động ; 01 ngõ vào âm thanh , 01 ngõ ra âm thanh; tích hợp 1 micro + 1 loa
•Cảnh báo bằng âm thanh ( do người dùng quy định ) và chớp đèn khi có sự kiện
•Nguồn 12VDC/POE ; Tiêu chuẩn IP67,
•Hỗ trợ dịch vụ HikConnect , tên miền CameraDDNS

Hình ảnh thực tế DS-2CD2T86G2-ISU/SL
