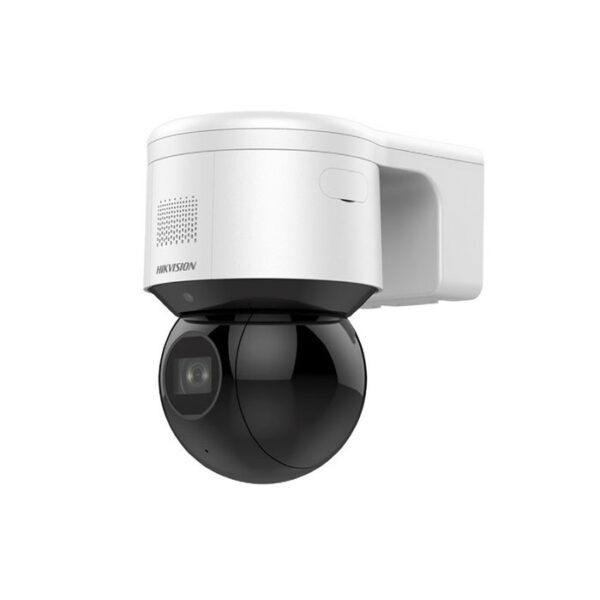

Camera IP Mini speed dome 4MP DS-2DE3A404IW-DE/W

Name: Camera IP Mini speed dome 4MP DS-2DE3A404IW-DE/W
Brand: HIKVISION
SKU: DS-2DE3A404IW-DE/W
Availability: InStock

Được xếp hạng 5 sao

0 đánh giá So sánh Đã thêm so sánh

Giảm 49%

Tính năng: PTZ, chống ngược sáng, chống nước, ghi hình rõ nét
Công nghệ sản xuất hiện đại bậc nhất
Tiên phong trong lĩnh vực camera giám sát
Giá sản phẩm đã bao gồm VAT

- Cam kết giá Camera IP Mini speed dome 4MP DS-2DE3A404IW-DE/W tốt nhất thị trường
- Hỗ trợ hướng dẫn sử dụng, cách lắp đặt 24/7
- Sản phẩm Camera IP Mini speed dome 4MP DS-2DE3A404IW-DE/W mới 100%
- Bảo hành sản phẩm miễn phí nếu lỗi đến từ nhà sản xuất

Hình thức

Giá bảo hành tại nhà4.689.600₫

Giá Online4.439.600₫

Xóa

Thêm vào giỏ

0855.116.555 Tư vấn trực tuyến 24/7 0855.116.555 Hỗ trợ bảo hành 24/7

Mua trả góp Duyệt online trong 4 giờ Trả góp qua thẻ Không cần xét duyệt

Tính năng: PTZ, chống ngược sáng, chống nước, ghi hình rõ nét
Công nghệ sản xuất hiện đại bậc nhất
Tiên phong trong lĩnh vực camera giám sát
Giá sản phẩm đã bao gồm VAT

- Cam kết giá Camera IP Mini speed dome 4MP DS-2DE3A404IW-DE/W tốt nhất thị trường
- Hỗ trợ hướng dẫn sử dụng, cách lắp đặt 24/7
- Sản phẩm Camera IP Mini speed dome 4MP DS-2DE3A404IW-DE/W mới 100%
- Bảo hành sản phẩm 24 tháng nếu lỗi đến từ nhà sản xuất

Sản phẩm tương tự
Phụ kiện mua cùng

Thông số kỹ thuật

Camera
Image Sensor	1/2.8 inch progressive scan CMOS
Max. Resolution	2560 × 1440
Min. Illumination	Color: 0.005 Lux @(F1.5, AGC ON); B/W: 0.001 Lux @(F1.5, AGC ON); 0 Lux with IR
Shutter Speed	1 to 1/30,000 s
Day & Night	IR cut filter
Zoom	4 × optical, 16 × digital
Lens
Focal Length	2.8 to 12 mm
FOV	Horizontal field of view: 96.7° to 31.6° (wide-tele)
	Vertical field of view: 51.1° to 17.7° (wide-tele)
	Diagonal field of view: 115.1° to 36.3° (wide-tele)
Focus	Auto, semi-auto, manual
Aperture	Max. F1.5
Zoom Speed	Approx. 2 s (optical lens, wide-tele)
Illuminator
Supplement Light Range	IR distance: up to 50 m, white light distance: up to 6 m
Smart Supplement Light	Yes
PTZ
Movement Range (Pan)	0° to 350°
Movement Range (Tilt)	0° to 90°
Pan Speed	Configurable, from 0.1°/s to 60°/s. Preset speed: 60°/s
Tilt Speed	Configurable, from 0.1°/s to 50°/s. Preset speed: 60°/s
Proportional Pan	Yes
Presets	300
Preset Freezing	Yes
Patrol Scan	8 patrols, up to 32 presets for each patrol
Park Action	Preset, patrol scan
3D Positioning	Yes
PTZ Status Display	Yes
Scheduled Task	Preset, patrol scan, dome reboot, dome adjust, aux output
Power-off Memory	Yes
Video
Main Stream	50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Main Stream	60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream	50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
Sub-Stream	60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream	50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
Third Stream	60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264
	Sub-stream: H.265/H.264/MJPEG
	Third Stream: H.265/H.264/MJPEG
Video Bit Rate	32 Kbps to 16 Mbps
H.264 Type	Baseline profile/main profile/high profile
H.265 Type	Main profile
Scalable Video Coding (SVC)	H.264 and H.265 encoding
Region of Interest (ROI)	8 fixed regions for each stream
Audio
Audio Compression	G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate	64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2)
Network
Protocols	IPv4/IPv6, HTTP, HTTPS, QoS,802.1x, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
Simultaneous Live View	Up to 20 channels
API	Open Network Video Interface, ISAPI, SDK, ISUP
User/Host	Up to 32 users. 3 user levels, administrator, operator and user
Security	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings,
Security	security audit log, TLS 1.2, host authentication (MAC address)
Network Storage	NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client	iVMS-4200, HikCentral, Hik-Connect
Web Browser	IE10-11, Chrome 57.0+, Firefox 52.0+, Safari 12+
Image Settings	Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Wide Dynamic Range (WDR)	120 dB
Defog	Digital defog
Image Enhancement	BLC, HLC, 3D DNR
Privacy Mask	24 programmable polygon privacy masks, mask color configurable
Regional Focus	Yes
Regional Exposure	Yes
Interface
Ethernet Interface	1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Built-in Microphone	1 built-in microphone
Built-in Speaker	1 built-in speaker, 8 Ω, 2 W. Max sound pressure level: 100 dB (10 cm)
Audio	1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
Alarm	1 input, 1 output
Power Output	12 VDC, max. 60 mA
Event
Basic Event	Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), alarm input and output
Smart Event	Face detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
Alarm Linkage	Preset, patrol scan, upload to FTP/memory card/NAS, notify surveillance center, send email, audible warning, flashing alarm
General
Power	12 VDC, 3.33 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A
Power	Max. 14 W (including max. 2.4 W for IR, 1.2 W for white light flashing)
Dimension	179.3 mm × 120.5 mm × 182 mm
Weight	Approx. 1.125 kg
Material	ADC12 + PC
Operating Condition	-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
Approval
Protection	IP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection

Chi tiết sản phẩm

Camera IP Mini speed dome 4MP DS-2DE3A404IW-DE/W

• Cảm biến 1/3″ progressive scan CMOS. Chuẩn nén H.265+/H.265/H.264+/H.264
• Độ nhạy sáng Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON), 0 lux with IR.
• Độ phân giải tối đa 4Mp, 2560×1440@25fps. Ống kính 2.8 mm to 12 mm. Hồng ngoại 50m
•(/W): Hỗ trợ Wifi 50m
• Zoom quang 4x, Zoom số 16x.
• Tính năng ngược sáng thực WDR, Tính năng giảm nhiễu số 3D DNR, Tính năng Bù ngược sáng BLC
• Hỗ trợ 300 Presets, Nhớ vị trí trước khi mất điện.
• Góc quay 0° đến 330°, Góc quét 0° đến 90°
• DS-2DE3A404IW-DE/W Hỗ trợ tính năng Phát hiện khuôn mặt, Phát hiện xâm nhập, Vượt hàng rảo ảo, Phát hiện vùng đi vào, Vùng đi ra. Phát hiện vật thể di dời, Hành lý bỏ quên. Phát hiện âm thanh ngoại lệ.
• Hỗ trợ thẻ nhớ MicroSD lên đến 256GB.
• Tích hợp mic và loa. Hỗ trợ 1 cổng Audio vào, 1 Audio ra. Hỗ trợ 1 cổng báo động vào, 1 cổng báo động ra.
• Hỗ trợ dịch vụ hik-connect, tên miền cameraddns.
• Tiêu chuẩn chống bụi, nước IP66
• Sáng đèn khi kích hoạt báo động
• Nguồn cấp 12VDC, hỗ trợ POE.

Hình ảnh thực tế DS-2DE3A404IW-DE/W
