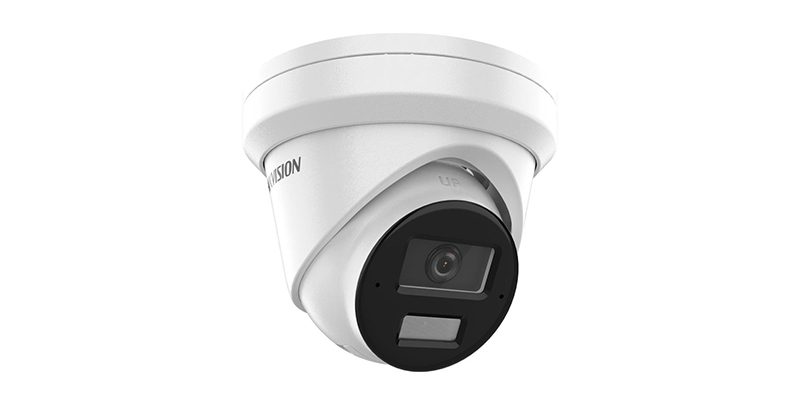

Camera IP Turet 6MP HIKVISION DS-2CD2363G2-LI2U

Được xếp hạng 5 sao

Tính năng: có mic kép, Tính năng phát hiện chuyển động phân biệt người và phương tiên, phát hiện chuyển động
Công nghệ sản xuất hiện đại bậc nhất
Tiên phong trong lĩnh vực camera giám sát
Giá sản phẩm đã bao gồm VAT

- Cam kết giá Camera IP Turet 6MP HIKVISION DS-2CD2363G2-LI2U tốt nhất thị trường
- Hỗ trợ hướng dẫn sử dụng, cách lắp đặt 24/7
- Sản phẩm Camera IP Turet 6MP HIKVISION DS-2CD2363G2-LI2U mới 100%
- Bảo hành sản phẩm miễn phí nếu lỗi đến từ nhà sản xuất

Hình thức

Giá bảo hành tại nhà

Giá Online

0855.116.555 Tư vấn trực tuyến 24/7 0855.116.555 Hỗ trợ bảo hành 24/7

Mua trả góp Duyệt online trong 4 giờ Trả góp qua thẻ Không cần xét duyệt

Tính năng: có mic kép, Tính năng phát hiện chuyển động phân biệt người và phương tiên, phát hiện chuyển động
Công nghệ sản xuất hiện đại bậc nhất
Tiên phong trong lĩnh vực camera giám sát
Giá sản phẩm đã bao gồm VAT

- Cam kết giá Camera IP Turet 6MP HIKVISION DS-2CD2363G2-LI2U tốt nhất thị trường
- Hỗ trợ hướng dẫn sử dụng, cách lắp đặt 24/7
- Sản phẩm Camera IP Turet 6MP HIKVISION DS-2CD2363G2-LI2U mới 100%
- Bảo hành sản phẩm 24 tháng nếu lỗi đến từ nhà sản xuất

Sản phẩm tương tự
Phụ kiện mua cùng

Thông số kỹ thuật

n Specification
Camera
Image Sensor	1/2.4" Progressive Scan CMOS
Max. Resolution	3200 × 1800
Min. Illumination	Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with light
Shutter Time	1/3 s to 1/100,000 s
Day & Night	IR cut filter
Angle Adjustment	Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Lens Type	Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV	2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127° 4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
Lens Mount	M12
Iris Type	Fixed
Aperture	F1.6
Depth of Field	2.8 mm: 1.8 m to ∞ 4 mm: 3.1 m to ∞
DORI
DORI	2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m 4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m
Illuminator
Supplement Light Type	IR, White Light
Supplement Light Range	Up to 30 m
Smart Supplement Light	Yes
IR Wavelength	850 nm
Video
Main Stream	50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream	50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream	50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
Video Compression	Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings.
Video Bit Rate	32 Kbps to 16 Mbps
H.264 Type	Baseline Profile, Main Profile, High Profile
H.265 Type	Main Profile
Scalable Video Coding (SVC)	H.264 and H.265 encoding
Bit Rate Control	CBR, VBR
Region of Interest (ROI)	1 fixed region for main stream and sub-stream
Target Cropping	Yes

Audio
Audio Compression	-2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate	-2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate	-2U: 8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering	-2U: Yes
Network
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Simultaneous Live View	Up to 6 channels
API	ONVIF (Profile S, Profile G), ISAPI, SDK, ISUP
Security	Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
User/Host	Up to 32 users 3 user levels: administrator, operator, and user
Network Storage	NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client	iVMS-4200, Hik-Connect, Hik-Central
Web Browser	Plug-in required live view: IE 11, Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+, Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
Image Parameters Switch	Yes
Day/Night Switch	Day, Night, Auto, Schedule
Image Settings	Rotate mode
Wide Dynamic Range (WDR)	120 dB
SNR	≥ 52 dB
Image Enhancement	BLC, HLC, 3D DNR
Privacy Mask	8 programmable polygon privacy masks
Interface
Ethernet Interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
Audio	Built-in Microphone: -2U: Arrayed dual-microphone
On-Board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Reset Key	Yes
Event
Basic Event	Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Linkage	Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
Deep Learning Function
Perimeter Protection	Line crossing, intrusion Support alarm triggering by specified target types (human and vehicle)

General
Power	12 VDC ± 25%, 0.66 A, max. 8 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9.5 W
Material	Metal
Dimension	Ø127.3 mm × 96.3 mm (Ø5.0" × 3.8")
Package Dimension	150 mm × 150 mm × 141 mm (5.9" × 5.5" × 5.5")
Weight	Approx. 515 g (1.1 lb.)
With Package Weight	Approx. 755 g (1.7 lb.)
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language	33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function	Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
Approval
EMC	CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
Safety	CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1
Environment	CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection	IP67: IEC 60529-2013

n Typical Application

Hikvision products are classified into three levels according to their anti -corrosion performance. Refer to the following description to choose for your using environment. This model has NO SPECIFIC PROTECTION.

Level	Description
Top-level protection	Hikvision products at this level are equipped for use in areas where professional anti-corrosion protection is a must. Typical application scenarios include coastlines , docks, chemical plants, and more.
Moderate protection	Hikvision products at this level are equipped for use in areas with moderate anti-corrosion demands. Typical application scenarios include coastal areas about 2 kilometers (1.24 miles) away from coastlines, as well as areas affected by acid rain.
No specific protection	Hikvision products at this level are equipped for use in areas where no specific anti-corrosion protection is needed.

Chi tiết sản phẩm

Camera IP Turet 6MP, chuẩn nén H265+
+ Cảm biến CMOS, kích thước: 1/2.4″
+ Chuẩn nén H.265+/H.265/H.264+/H.264
+ Hỗ trợ 3 luồng dữ liệu
+ Độ nhạy sáng : Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR
+ Ông kính 2.8/4 mm
+ Độ phân giải: 3200 × 1800@25fps
+ Tính năng WDR 120dB ; 3D DNR; ICR, BLC
+ Hồng ngoại 30m
+ Chuẩn chống nước IP 67
+ Hỗ trợ thẻ nhớ micro SD/SDHC/SDXC tối đa 256GB;
+ Tích hợp Mic kép trên camera
+ Tích hợp Audio in-out, Alarm in-out
+ Hỗ trợ dịch vụ Hik-Connect, Hỗ trợ tên miền Cameraddns
+ Tính năng phát hiện chuyển động phân biệt người và phương tiện
+ Hỗ trợ tính năng Smart Hybrid Light
+ Tính năng Phát hiện vượt hàng rào ảo, phát hiện xâm nhập.
+ Nguồn cấp DC12V & PoE

Đánh giá Camera IP Turet 6MP HIKVISION DS-2CD2363G2-LI2U

0.0 Đánh giá trung bình

5 0% | 0 đánh giá

4 0% | 0 đánh giá

3 0% | 0 đánh giá

2 0% | 0 đánh giá

1 0% | 0 đánh giá

Đánh giá ngay

Đánh giá Camera IP Turet 6MP HIKVISION DS-2CD2363G2-LI2U

Chưa có đánh giá nào.

Hỏi đáp

Chưa có hỏi đáp nào.
