| Model |

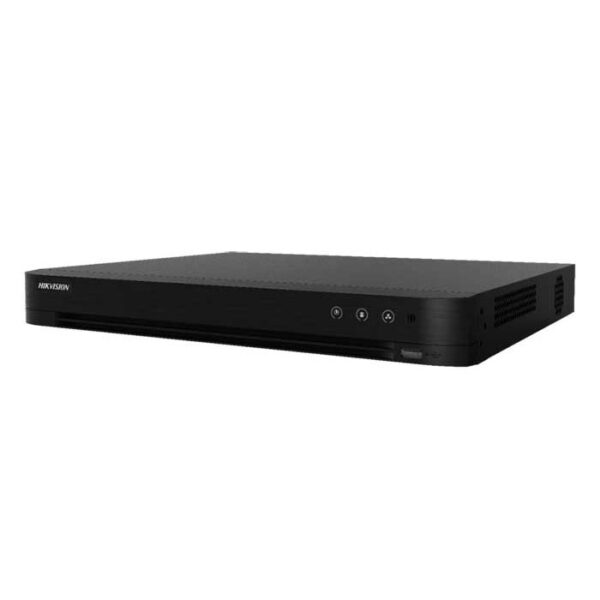

iDS-7208HQHI-M1/S |
| Motion Detection 2.0 |
| Human/Vehicle Analysis |
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; |
| Perimeter Protection |
| Human/Vehicle Analysis |
Up to 4-ch |
| Recording |
| Video compression |
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding resolution |
Main stream: |
| When 1080p lite mode not enabled: |
| For 4 MP stream access: |
| 4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) |
| For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps |
| For 1080p stream access: |
| 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
| For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
| When 1080p Lite mode enabled: |
| 4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 |
| fps (N) |
| Sub-stream: |
| WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N) |
| Video bitrate |
32 Kbps to 6 Mbps |
| Dual stream |
Support |
| Stream type |
Video, Video & Audio |
| Audio compression |
G.711u |
| Audio bitrate |
64 Kbps |
| Video and Audio |
| IP video input |
2-ch (up to 10-ch) |
| Enhanced IP mode on: 4-ch (up to 12-ch), each up to 4 Mbps |
| Up to 6 MP resolution |
| Support H.265+/H.265/H.264+/H.264 IP cameras |
| Analog video input |
8-ch |
| BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDTVI input |
4 MP, 3 MP, 1080p30, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps |
| *: The 3 MP signal input is only available for channel 1 of iDS-7204HQHI-M1/S, for channel 1/2 of iDS-7208HQHI-M1/S, and for channel 1/2/3/4 of iDS7216HQHI-M1/S. |
| AHD input |
4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps |
| HDCVI input |
4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps |
| CVBS input |
PAL/NTSC |
| CVBS output |
1-ch, BNC (1.0 Vp-p, 75 Ω), |
| resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| HDMI/VGA output |
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI/VGA simultaneous output |
| Audio input |
1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| 8-ch via coaxial cable |
| Audio output |
1-ch, RCA (Linear, 1 KΩ) |
| Two-way audio |
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
| Synchronous playback |
8-ch |
| Network |
| Remote connection |
64 |
| Network protocol |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Network interface |
1, RJ45 10/100 Mbps self-adaptive Ethernet interface |
| Wi-Fi |
Connectable to Wi-Fi network by Wi-Fi dongle through USB interface |
| Auxiliary interface |
| SATA |
1 SATA interface, up to 10 TB capacity for each disk |
| Serial interface |
RS-485 (half-duplex) |
| USB interface |
Front panel: 1 × USB 2.0; |
| Rear panel: 1 × USB 2.0 |
| General |
| Power supply |
12 VDC, 1.5 A |
| Consumption (without HDD) |
≤ 18 W |
| Working temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
| Working humidity |
10% to 90% |
| Dimension (W × D × H) |
315 × 242 × 45 mm |
| Weight (without HDD) |
≤ 1.78 kg |
