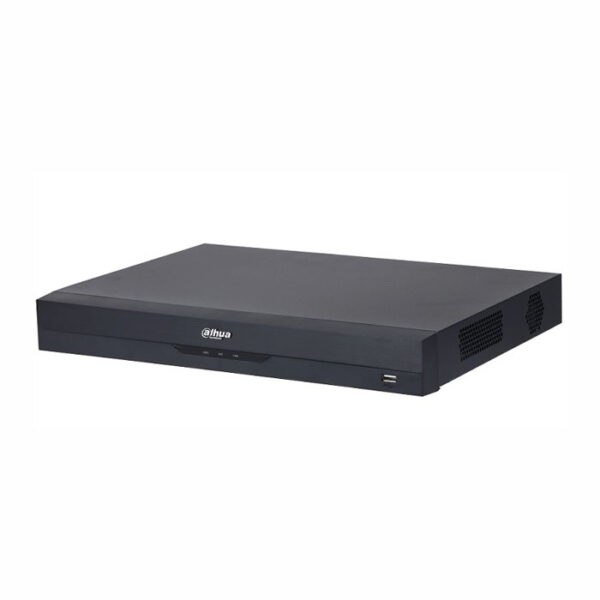

Đầu ghi hình HDCVI 32 kênh Dahua DH-XVR5232AN-I3

Được xếp hạng 5 sao
0 đánh giá So sánh Đã thêm so sánh
Dh Xvr5232an I3
  • Tính năng: Thu hình ảnh và lưu trữ video
  • Công nghệ sản xuất hiện đại bậc nhất
  • Tiên phong trong lĩnh vực camera giám sát
  • Giá sản phẩm đã bao gồm VAT

- Cam kết giá Đầu ghi hình HDCVI 32 kênh Dahua DH-XVR5232AN-I3 tốt nhất thị trường
- Hỗ trợ hướng dẫn sử dụng, cách lắp đặt 24/7
- Sản phẩm Đầu ghi hình HDCVI 32 kênh Dahua DH-XVR5232AN-I3 mới 100%
- Bảo hành sản phẩm miễn phí nếu lỗi đến từ nhà sản xuất

cart-icon Thêm vào giỏ
0855.116.555 Tư vấn trực tuyến 24/7 0855.116.555 Hỗ trợ bảo hành 24/7
Mua trả góp Duyệt online trong 4 giờ Trả góp qua thẻ Không cần xét duyệt
  • Tính năng: Thu hình ảnh và lưu trữ video
  • Công nghệ sản xuất hiện đại bậc nhất
  • Tiên phong trong lĩnh vực camera giám sát
  • Giá sản phẩm đã bao gồm VAT

- Cam kết giá Đầu ghi hình HDCVI 32 kênh Dahua DH-XVR5232AN-I3 tốt nhất thị trường
- Hỗ trợ hướng dẫn sử dụng, cách lắp đặt 24/7
- Sản phẩm Đầu ghi hình HDCVI 32 kênh Dahua DH-XVR5232AN-I3 mới 100%
- Bảo hành sản phẩm 24 tháng nếu lỗi đến từ nhà sản xuất

Sản phẩm tương tự
Giảm 45%
Ids 7204hqhi M1 S

Đầu ghi hình 4 kênh Turbo ACUSENSE iDS-7204HQHI-M1/S HDTVI 4MP & 2 MP

Được xếp hạng 0 5 sao
1.500.000₫ – 1.700.000₫
Giảm 48%
Ids 7208huhi M2 Fa

Đầu ghi hình 8 kênh Turbo ACUSENSE iDS-7208HQHI-M2/S

Được xếp hạng 0 5 sao
2.645.000₫ – 2.845.000₫
Giảm 51%
Ids 7232hqhi M2 S

Đầu ghi hình 32 kênh Turbo ACUSENSE iDS-7232HQHI-M2/S

Được xếp hạng 0 5 sao
7.495.000₫ – 7.795.000₫
Giảm 48%
Ids 7204huhi M1 S

Đầu ghi hình 4 kênh Turbo ACUSENSE iDS-7204HUHI-M1/S

Được xếp hạng 0 5 sao
2.120.000₫ – 2.152.000₫
Dh Xvr1b04 I

Đầu ghi hình HDCVI 4 kênh Dahua DH-XVR1B04-I

Được xếp hạng 0 5 sao
849.000₫
Dh Xvr7108he 4kl X

Đầu ghi hình HDCVI 8 kênh Dahua DH-XVR7108HE-4KL-X

Được xếp hạng 0 5 sao
Giá: Liên hệ
Dh Xvr5108hs I3

Đầu ghi hình HDCVI 8 kênh Dahua DH-XVR5108HS-I3

Được xếp hạng 0 5 sao
1.879.000₫
Dh Xvr5116h 4kl I3

Đầu ghi hình HDCVI 16 kênh Dahua DH-XVR5116H-4KL-I3

Được xếp hạng 0 5 sao
6.683.000₫
Giảm 49%
Ids 7216hqhi M2 S

Đầu ghi hình 16 kênh Turbo ACUSENSE iDS-7216HQHI-M2/S

Được xếp hạng 0 5 sao
4.810.000₫ – 5.110.000₫
Dh Xvr5104hs I3

Đầu ghi hình HDCVI 4 kênh Dahua DH-XVR5104HS-I3

Được xếp hạng 0 5 sao
1.549.000₫

Thông số kỹ thuật

System
Main ProcessorIndustrial-grade processor
Operating SystemEmbedded Linux
Perimeter Protection
Perimeter Performance AI by Recorder (Number of Channels)2 channels, 10 IVS for each channel
Face Detection
Face AttributesGender, age groups , glasses, expressions , face mask, beard
Face Detection Performance of AI by Recorder (Number of Channels)2 channels (up to 12 face images/s)
Face Recognition
Face Database CapacityUp to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture
Face Recognition Performance of AI by Recorder (Number of Channels)2 channels
SMD Plus
SMD Plus by Recorder16 channels: Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change
Audio and Video
Analog Camera Input32 BNC ports, CVI access by default, supports HDCVI/AHD/TVI/CVBS auto-detect
Camera Input1. CVI: 5MP, 4 MP, 1080P@25/30 fps; 720P@50/60 fps; 720P@25/30 fps.
2. TVI: 5MP, 4MP, 3MP, 1080P@25/30 fps; 720P @25/30 fps.
3. AHD: 5MP, 4MP, 3MP, 1080P@25/30 fps, 720P @25/30 fps
IP Camera InputUp to 32 channels of IPC access
32 channels (analog channels are converted to IP channels)
incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps
Encoding CapacityMain stream: All channel 5M-N@(1fps–10fps); 4M-N/1080P@(1fps–15fps); 1080N; 720P; 960H; D1; CIF@(1fps–25/30fps)
Sub stream: D1/CIF@(1fps–25/30fps)
Dual-streamYes
Video Frame RatePAL: 1 fps–25 fps.
NTSC: 1 fps–30 fps
Video Bit Rate32 kbps–6144 kbps per channel
Audio Sampling8 kHz, 16 bit
Audio Bit Rate64 kbps
Video Output1 HDMI, 1 VGA, 1 TV
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display1/4/8/9/16/25/36
Third-party Camera AccessOnvif, RTSP, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung
Compression Standard
Video CompressionAI Coding; H.265+; H.265; H.264+;H.264
Audio CompressionG.711A; G.711u; PCM
Network
Network ProtocolHTTP; HTTPS; TCP / IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
Mobile Phone AccessiOS, Android
InteroperabilityONVIF 21.06, CGI
BrowserChrome, IE9 or later, Firefox
Network ModeSingle-address mode
Recording Playback
Record ModeGeneral, motion detection; intelligent; alarm; POS
Recording Playback1/4/9/16
Backup MethodUSB device and network
Playback ModeInstant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
Storage
Disk GroupYes
Alarm
General AlarmMotion detection, video loss, tampering
Anomaly AlarmNo disk, storage error, low space, offline, IP conflict, MAC conflict
Intelligent AlarmFace detection, face recognition, perimeter protection
Alarm LinkageRecord, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email
Ports
TV Output1 channel
Audio Input1-channel RCA (external)
32-channel BNC (coaxial audio)
Audio Output1-channel RCA
Two-way TalkYes (share the same audio input with the first channel)
HDD Interface2 SATA ports, up to 16 TB, the maximum HDD capacity varies with environment temperature
RS-4851
USB2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
HDMI1
VGA1
Network Port1 (10/100/1000 Mbps Ethernet port, RJ-45)
General
Power Supply12 VDC, 5 A
Power ConsumptionLower than 17 W
Net Weight1.98 kg (4.36 lb)
Gross Weight3.15 kg (6.94 lb)
Product Dimensions1U, 375 × 289 × 53  (W × D × H)
Packaging Dimensions433 × 141 × 366 mm  (W × D × H)
Operating Temperature–10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity0%–90% (RH)
InstallationDesktop

Đầu ghi hình HDCVI 32 kênh Dahua DH-XVR5232AN-I3

32 Channels Penta-brid 5M-N/1080P 1U 2HDDs WizSense Digital Video Recorder
■ Đầu ghi 32 kênh HDCVI
■ Hỗ trợ camera HDCVI/Analog/IP/TVI/AHD
■ Chuẩn nén hình ảnh H265+
■ Hỗ trợ SMD Plus và bảo vệ vành đai
■ Hỗ trợ AI : Phân tích khuôn mặt, IOT và POS
■ Hỗ trợ camera 5MP
■ Hỗ trợ chuyển đổi kênh IP (32) hỗ trợ lên đến camera 6MP
■ Hỗ trợ 4 kênh bảo vệ vành đai ( Analog)
■ Hỗ trợ 16 kênh SMD Plus ( Analog)
■ DH-XVR5232AN-I3 Hỗ trợ 2 kênh nhận dạng khuôn mặt con người ( Analog)
■ Hỗ trợ 2 ổ cứng 16TB, 2 cổng usb 2.0, 1 cổng mạng RJ45(100M),1 cổng RS485
■ Nguồn DC12V/5A
■ Chất liệu vỏ sắt

Hình ảnh thực tế DH-XVR5232AN-I3:
