| Model |

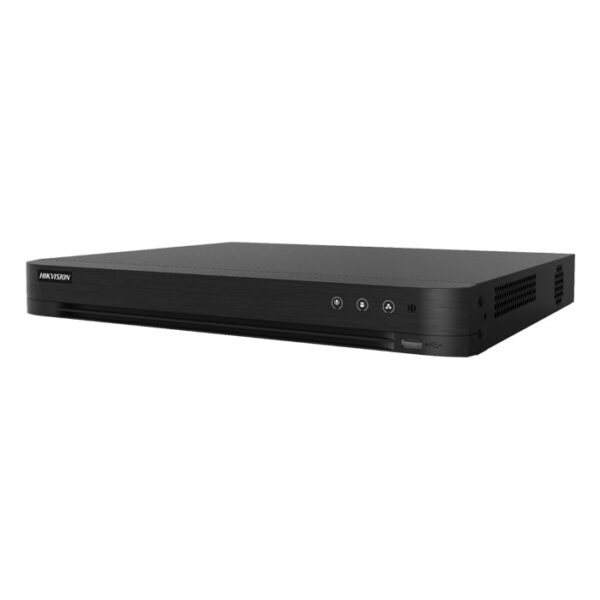

iDS-7232HQHI-M2/S(E) |
| Motion Detection 2.0 |
| Human/Vehicle Analysis |
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; |
| Quick search by object or event type is supported; |
| Perimeter Protection |
| Line Crossing Detection/Intrusion Detection |
4-ch |
| Recording |
| Video compression |
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding resolution |
When 1080p lite mode is not enabled: |
| 4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF |
| When 1080p lite mode is enabled: |
| 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF |
| Frame rate |
Main stream: |
| When 1080p Lite mode is not enabled: |
| 4 MP lite/1080p@15 fps; 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
| When 1080p Lite mode is enabled: |
| 4 MP lite@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
| Sub-stream: |
| WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N) |
| Video bit rate |
32 Kbps to 6 Mbps |
| Dual stream |
Support |
| Stream type |
Video, Video & Audio |
| Audio compression |
G.711u |
| Audio bit rate |
64 Kbps |
| Video and Audio |
| IP video input2 |
2-ch (up to 34-ch) |
| Enhanced IP mode on: |
| 8-ch (up to 40-ch), each up to 4 Mbps |
| Up to 6 MP resolution |
| Support H.265+/H.265/H.264+/H.264 IP cameras |
| Analog video input |
32-ch |
| BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDTVI input |
3K@20 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps |
| AHD input |
4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30fps |
| HDCVI input |
4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30fps |
| CVBS input |
PAL/NTSC |
| CVBS output |
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| VGA output |
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| HDMI output |
1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Video output mode |
HDMI and VGA simultaneous output |
| Audio input |
1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| 32-ch via coaxial cable |
| Audio output |
1-ch, RCA (Linear, 1 KΩ) |
| Two-way audio |
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
| Synchronous playback |
16-ch |
| Network |
| Total bandwidth |
128 Mbps |
| Incoming bandwidth (Enhanced IP mode) |
96 Mbps |
| Remote connection |
128 |
| Network protocol |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Network interface |
1, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| Auxiliary interface |
| SATA |
2 SATA interfaces |
| Capacity |
Up to 10 TB capacity for each disk |
| Serial interface |
1 RS-485 (full-duplex) |
| USB interface |
Front panel: 1 × USB 2.0, rear panel: 1 × USB 3.0 |
| General |
| Power supply |
12 VDC, 3.3 A |
| Consumption (without HDD) |
≤ 40 W |
| Working temperature |
-10°C to +55°C (+14°F to +131°F) |
| Working humidity |
10% to 90% |
| Dimension (W × D × H) |
385 × 315 × 52 mm (15.2 × 12.4 × 2.0 inch) |
| Weight (without HDD) |
≤ 2 kg (4.4 lb.) |
